6×4 battery-electric tipper.
Skywell

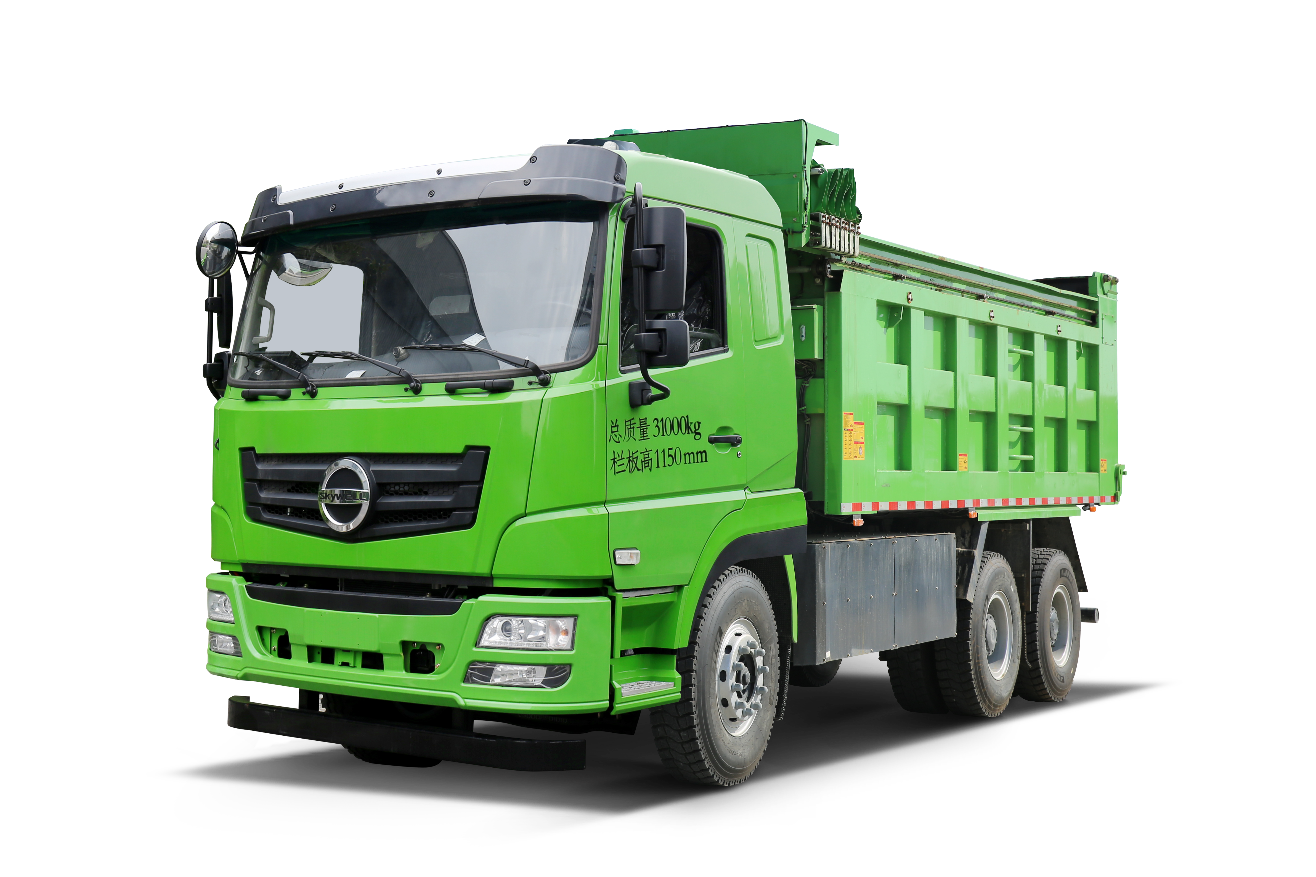

Skywell 6×4 Charge Tipper
6×4 battery-electric tipper.
- Vehicle Category
- Trucks
- Drive Configuration
- 6×4
- Powertrain: Battery Electric Vehicle (BEV)
- Vehicle class: Tipper Truck
- Dimensions / wheelbase: 8600 × 2550 × 3465 mm / 4000 + 1400 mm
Export configuration, availability, and delivery arrangements are confirmed for each project.
Commercial Vehicles
Overview
Vehicle data
Specifications
These specifications come from the currently reviewed material. Export-version configurations are confirmed per project.
| No. | Configuration item | Specification |
|---|---|---|
| 1 | Dimensions | 8600 × 2550 × 3465 mm |
| 2 | Wheelbase | 4000 + 1400 mm |
| 3 | Container Dimensions | 5800 × 2350 × 1200/1500 mm |
| 4 | Curb Weight | 16,800 kg |
| 5 | GVW | 45,000 kg |
| 6 | Axle | Front 9.5T; middle/rear 2 × 16T |
| 7 | Motor Rated / Peak Power | 250 / 360 kW or 280 / 410 kW |
| 8 | Motor Rated / Peak Torque | 1330 / 2400 N·m or 1400 / 2500 N·m |
| 9 | Gearbox | 6-speed AMT or 4-speed AMT |
| 10 | Battery | 281.91 kWh LFP |
| 11 | Max. Speed | 80 km/h |
| 12 | Max. Gradeability | ≥30% |
| 13 | Range | 150–180 km |
| 14 | Charging Model | DC charge |
| 15 | Charge Time | 1–1.5 h |
