The KL MAX uses an efficient turbocharger and thermal management to reduce energy use. Its proven powertrain combines strong output and dependable operation for economical long-haul transport.
Dongfeng Commercial Vehicle

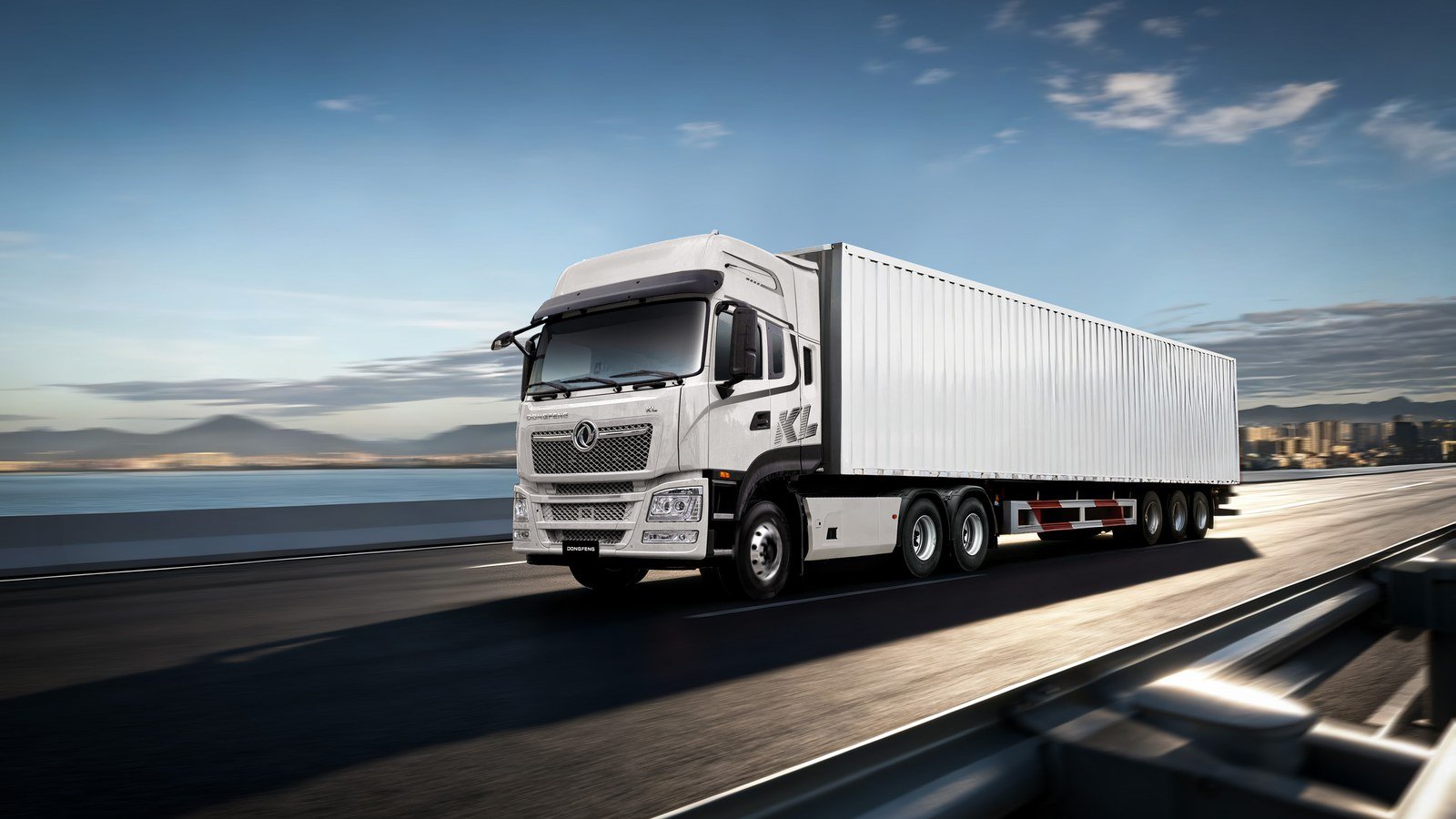

Dongfeng KL MAX Tractor
RELIABLE ECONOMY, ROBUST EFFICIENCY
Cost-effective long-haul tractor with 420–600 hp Dongfeng or Cummins diesel power and a gross combination weight of 42–70 tonnes.
- Vehicle Category
- Trucks
- Drive Configuration
- 4×2 · 6×4
- Powertrain: Diesel / LNG
- Vehicle class: Tractor (heavy truck)
- Dimensions / wheelbase: 6990–7470 × 2550 × 3940–3960 mm / 3350+1350, 3450+1350, 3800+1350 mm(6×4); 6080–6360 × 2524–2550 × 2970–3900 mm / 3500, 3800 mm(4×2)
Export configuration, availability, and delivery arrangements are confirmed for each project.
Commercial Vehicles
Overview
Vehicle data
Specifications
These specifications come from the currently reviewed material. Export-version configurations are confirmed per project.
| No. | Configuration item | Specification |
|---|---|---|
| 1 | Version | KL MAX Tractor |
| 2 | Brand | Dongfeng Trucks |
| 3 | Vehicle class | Tractor (heavy truck) |
| 4 | Powertrain | Diesel / liquefied natural gas (LNG) |
| 5 | Dimensions (L × W × H) | 6,990–7,470 × 2,550 × 3,940–3,960 mm (6×4); 6,080–6,360 × 2,524–2,550 × 2,970–3,900 mm (4×2) |
| 6 | Wheelbase | 3,350+1,350 / 3,450+1,350 / 3,800+1,350 mm (6×4); 3,500 / 3,800 mm (4×2) |
| 7 | Gross combination weight (GCW) | 42–70 t |
| 8 | Curb weight | 8.8–10.4 t (6×4); 7.35 t (4×2) |
| 9 | Body style | Semi-trailer tractor |
| 10 | Engine | Dongfeng Loong-Gine: dCi420 / dCi450 / dCi465 / DDi11E465 / DGi13T480 / DGi13T520; Cummins: Z10E440 / Z10E460 / ISZ520 / Z14E480 / Z14E520 |
| 11 | Transmission / reduction gear | AMT: Endurant 12 AMT / ZF12 AMT / DA12; manual: DT14 / 12JS |
| 12 | Drive type | 4×2 / 6×2R / 6×4 |
| 13 | Emissions standard | Euro III / Euro V / Euro VI |
| 14 | Steering position | Left-hand / right-hand drive |
| 15 | Braking system | Pneumatic service brakes; spring-applied parking brakes |
| 16 | Front/rear axle rated load | 7,000 kg front axle / 18,000 kg tandem rear axle |
| 17 | Tire specification | 12R22.5 18PR / 295/80 R22.5 18PR |
| 18 | ABS / ESC | ABS / electronic stability control (ESC) |
