3T battery-electric van in passenger (up to 14 seats) and freight configurations, LHD/RHD.

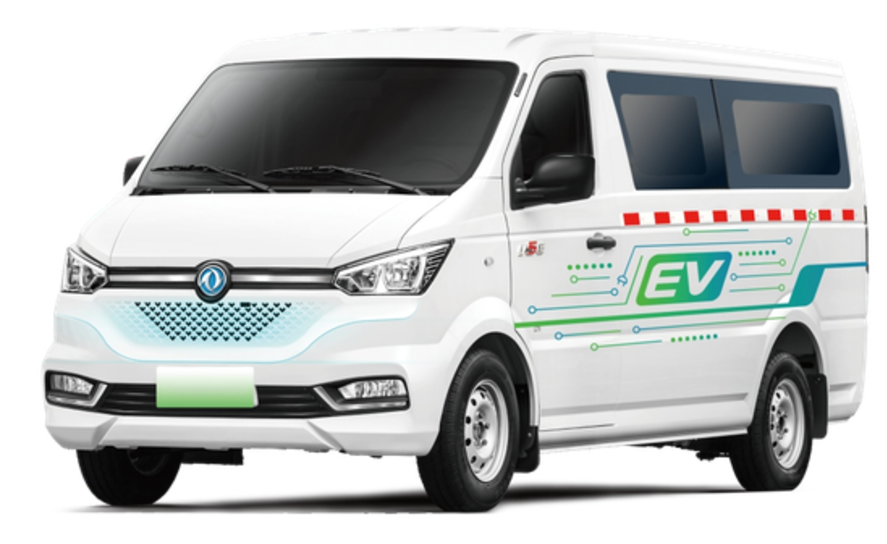

Dongfeng E-STAR
E-STAR V Passenger / Freight Van 3T
3T battery-electric van in passenger (up to 14 seats) and freight configurations, LHD/RHD.
- Vehicle Category
- Trucks
- Powertrain: Battery Electric Vehicle (BEV)
- Vehicle class: Van
- Dimensions / wheelbase: 4865 × 1715 × 2060 / 5265 × 1715 × 2060 mm / 3050 / 3450 mm
Export configuration, availability, and delivery arrangements are confirmed for each project.
Commercial Vehicles
Overview
Vehicle data
Specifications
These specifications come from the currently reviewed material. Export-version configurations are confirmed per project.
| No. | Configuration item | Specification |
|---|---|---|
| 1 | Version | 3T Platform, Passenger/Freight Model |
| 2 | Brand | Dongfeng E-STAR |
| 3 | Vehicle class | Van |
| 4 | Powertrain | Battery Electric Vehicle (BEV) |
| 5 | Dimensions (L × W × H) | 4865 × 1715 × 2060 / 5265 × 1715 × 2060 mm |
| 6 | Wheelbase | 3050 / 3450 mm |
| 7 | Gross vehicle weight (GVW) | 3 T |
| 8 | Curb weight | 1640 kg |
| 9 | Body style | Trucks/Vans |
| 10 | Drive-motor rated/peak power and torque | 90 kW / 230 N·m (rated/peak) |
| 11 | Transmission/reduction gear | Direct Drive (Single Gear Ratio) |
| 12 | Drive type | Rear-wheel drive; choice of left- or right-hand drive |
| 13 | Traction battery | 41.86 / 53.58 kWh, CATL |
| 14 | Fast-charging time (20%–80%) | 36 min (20%–80%) |
| 15 | Braking system | Hydraulic Braking |
| 16 | Front/rear axle rated load | 1.8 T |
| 17 | Tire specification | 195R14C |
| 18 | ABS/ESC | ABS |
| 19 | Cargo body/box | Freight/Passenger Type (Seats ≤ 11/2 or ≤ 14/2) |
| 20 | Cargo volume | — (Cargo version: approx. 6 / 7 m³) |
E-STAR V Passenger / Freight Van 3T
