4T long-wheelbase battery-electric freight van, up to 100.96 kWh, 290 km, 11.9 m³ cargo.
Dongfeng E-STAR

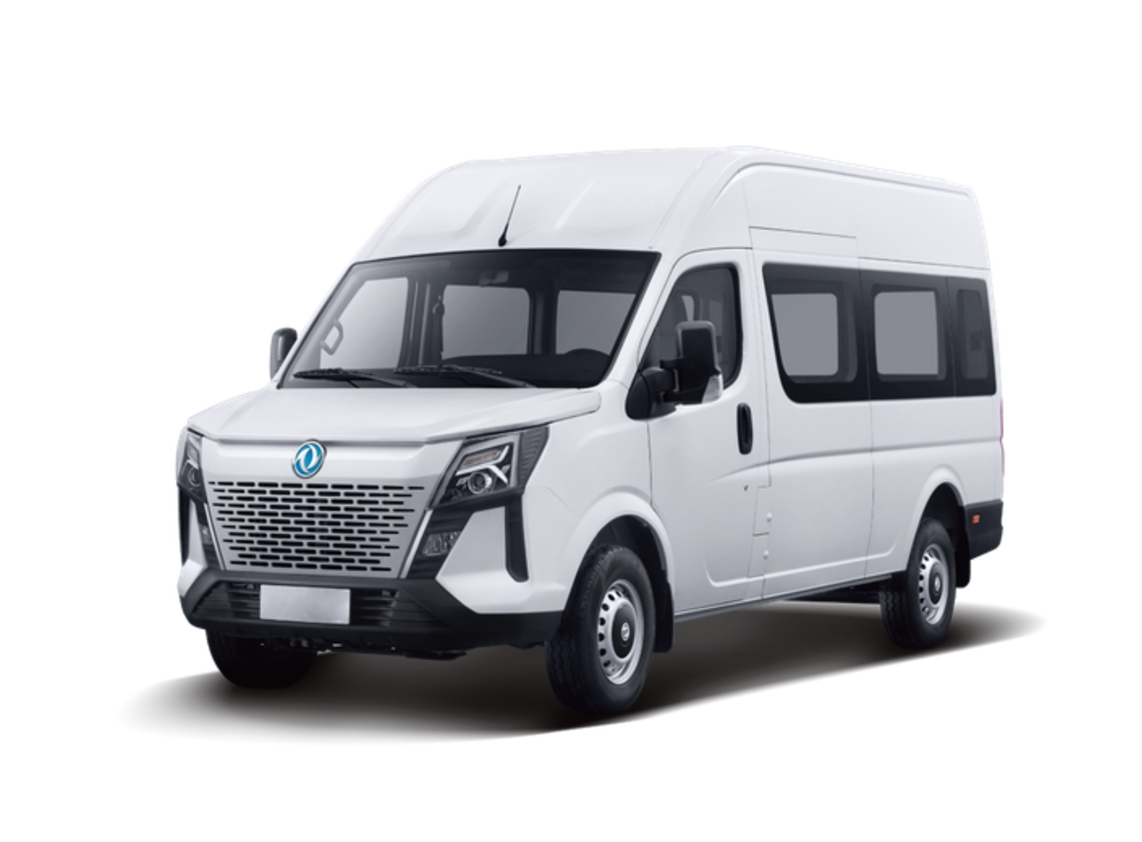

E-STAR V Freight Van 4T
4T long-wheelbase battery-electric freight van, up to 100.96 kWh, 290 km, 11.9 m³ cargo.
- Vehicle Category
- Trucks
- Powertrain: Battery Electric Vehicle (BEV)
- Vehicle class: Van
- Dimensions / wheelbase: 5750 × 2036 × 2590 / 5995 × 2036 × 2590 mm / 3610 mm
Export configuration, availability, and delivery arrangements are confirmed for each project.
Commercial Vehicles
Overview
Vehicle data
Specifications
These specifications come from the currently reviewed material. Export-version configurations are confirmed per project.
| No. | Configuration item | Specification |
|---|---|---|
| 1 | Version | 4T Platform, Cargo Version |
| 2 | Brand | Dongfeng E-STAR |
| 3 | Vehicle class | Van |
| 4 | Powertrain | Battery Electric Vehicle (BEV) |
| 5 | Dimensions (L × W × H) | 5750 × 2036 × 2590 / 5995 × 2036 × 2590 mm |
| 6 | Wheelbase | 3610 mm |
| 7 | Gross vehicle weight (GVW) | 4.25 T |
| 8 | Curb weight | 2650 / 2700 kg |
| 9 | Body style | Trucks/Vans |
| 10 | Drive-motor rated/peak power and torque | 135 kW / 350 N·m (rated/peak) |
| 11 | Transmission/reduction gear | Direct Drive (Single Gear Ratio) |
| 12 | Drive type | Rear-wheel drive |
| 13 | Traction battery | 77 / 100.96 kWh, Contemporary Amperex Technology Co., Ltd. (CATL) |
| 14 | Fast-charging time (20%–80%) | 30 / 45 min (20%–80%) |
| 15 | Braking system | Hydraulic Braking |
| 16 | Front/rear axle rated load | 1.7 T / 2.5 T |
| 17 | Tire specification | 215/75R16C |
| 18 | ABS/ESC | ABS |
| 19 | Cargo body/box | Cargo compartment: 11.6 / 11.9 m³ |
| 20 | Cargo volume | 11.6 / 11.9 m³ |
